CMD Porthole Power, USB Charging, Data & Media

  • Available in three colours: black, white and grey. with a matching trim
  • Fits in to standard 80mm grommet hole
  • Designed to fit any desk thickness between 13mm – 50mm
  • Available with a choice of power including USB Charging, data/media (USB data transfer, HDMI and 3.5mm Audio Mini Jack) sockets giving excellent versatility for the user
  • Wireland starter cable required for this product
  • Individually fused socket, independently certified to BS 5733
  • Fully segregated power and data
  • Compliance capability with BS 6936
  • Complies with charging standard (BS EN 62684) for data enabled mobile phones
  • Option for 2 independent USB charging ports

£0.00 (£0.00 exclusive of VAT)

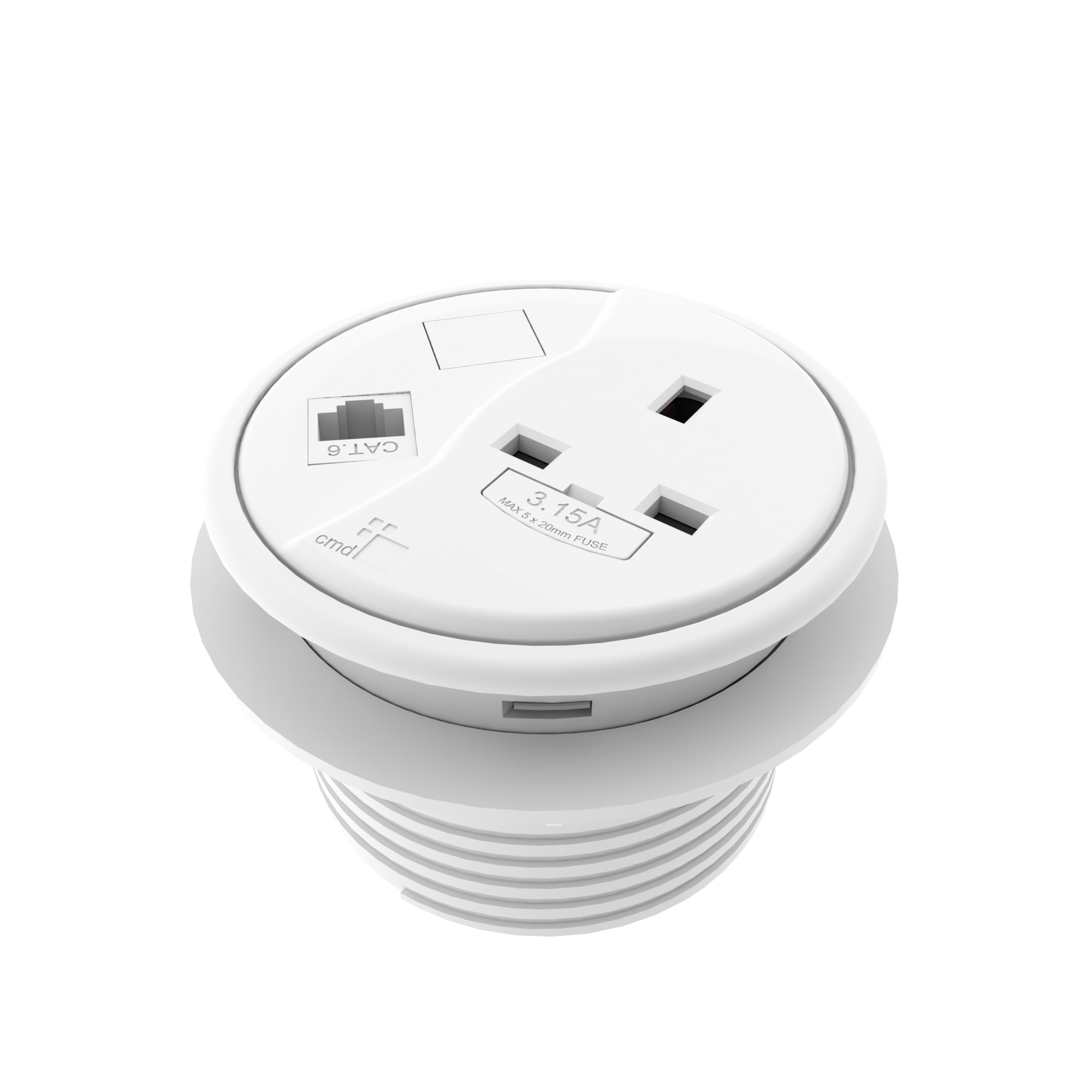

Porthole power and data module converts any 80mm grommet hole into an through desk power and data solution. With a stylish and compact design, Porthole is the perfect choice for space saving installations, discreet power solutions  (Porthole can be installed into ‘soft furnishings’) or hot desking environments.

The module is supplied with 1 x UK power socket as standard, but has the option to add in:

  • USB charging
  • USB data transfer
  • HDMI
  • Data
  • 3.5mm Audio Jack

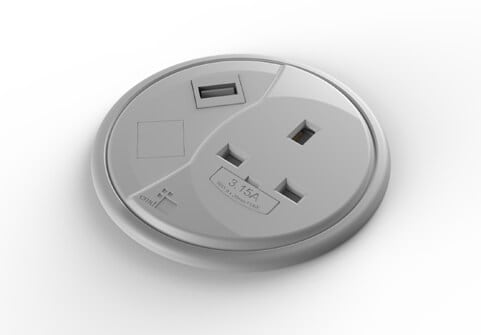

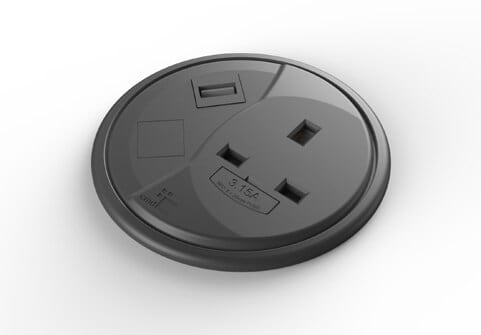

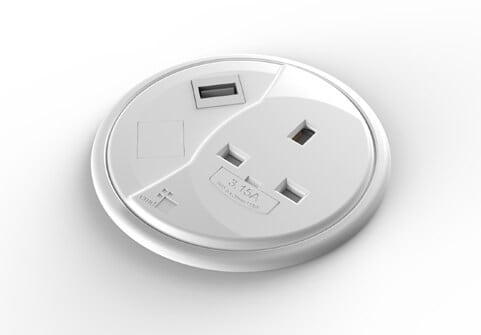

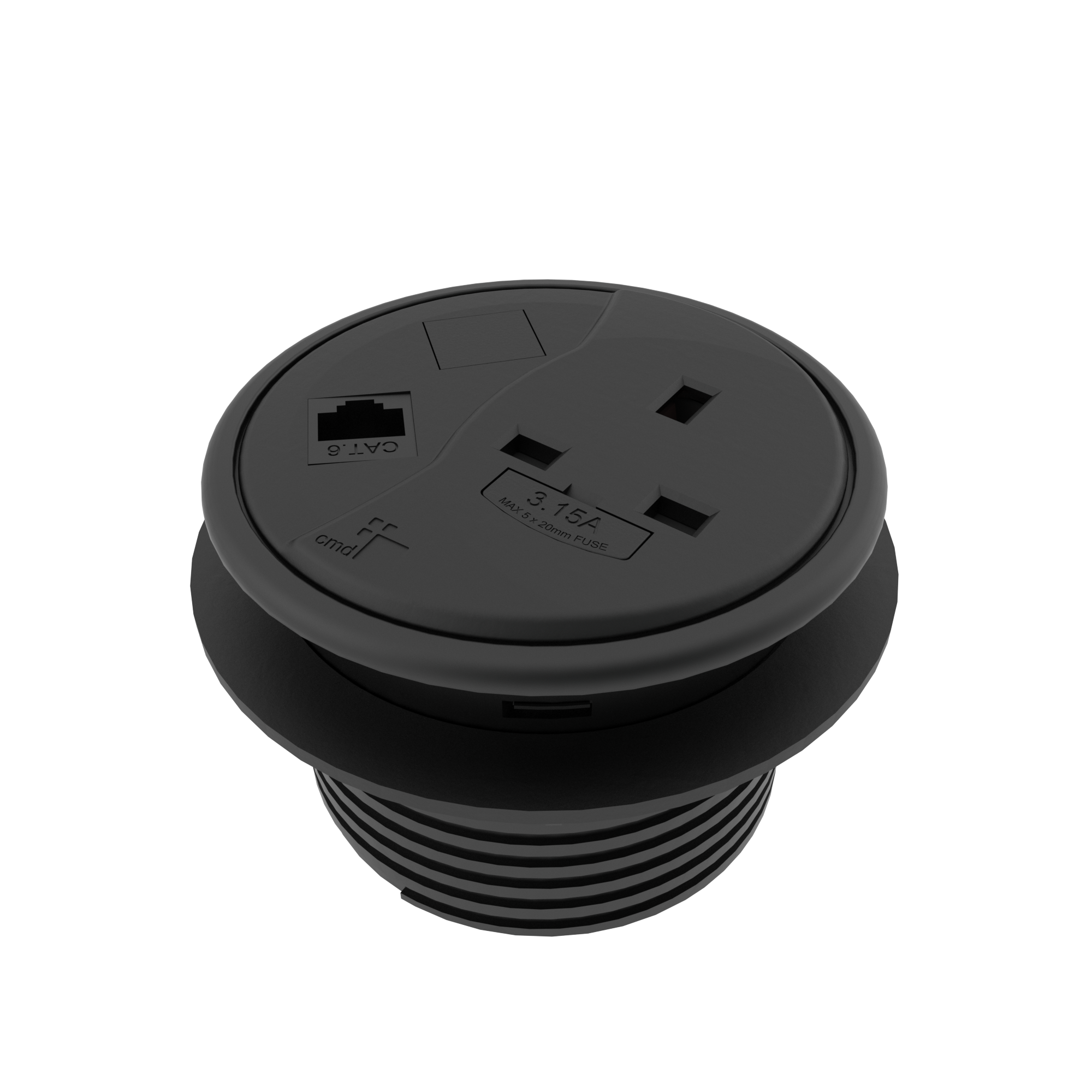

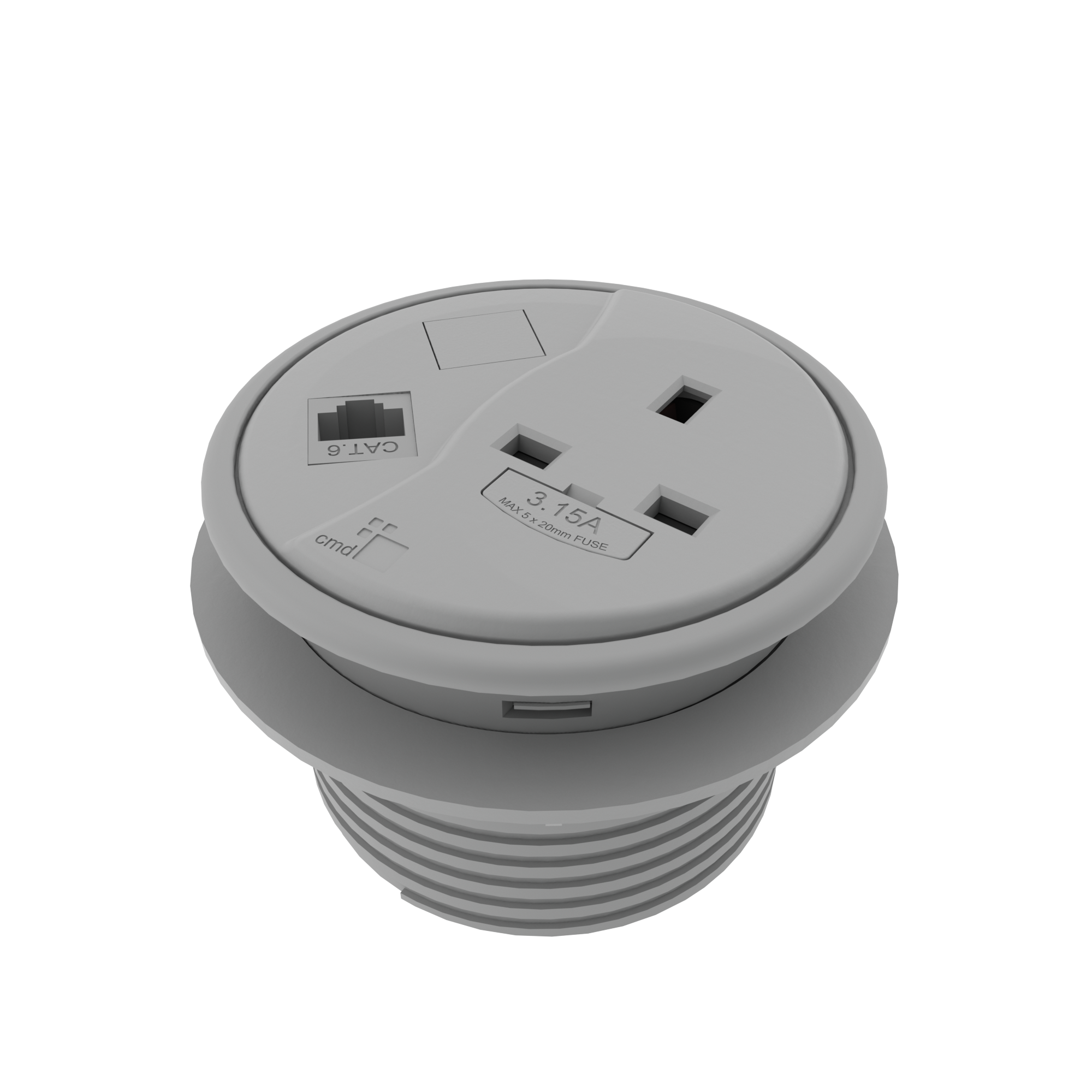

Available in three colours: Black, White or Grey, with a matching finished trim.

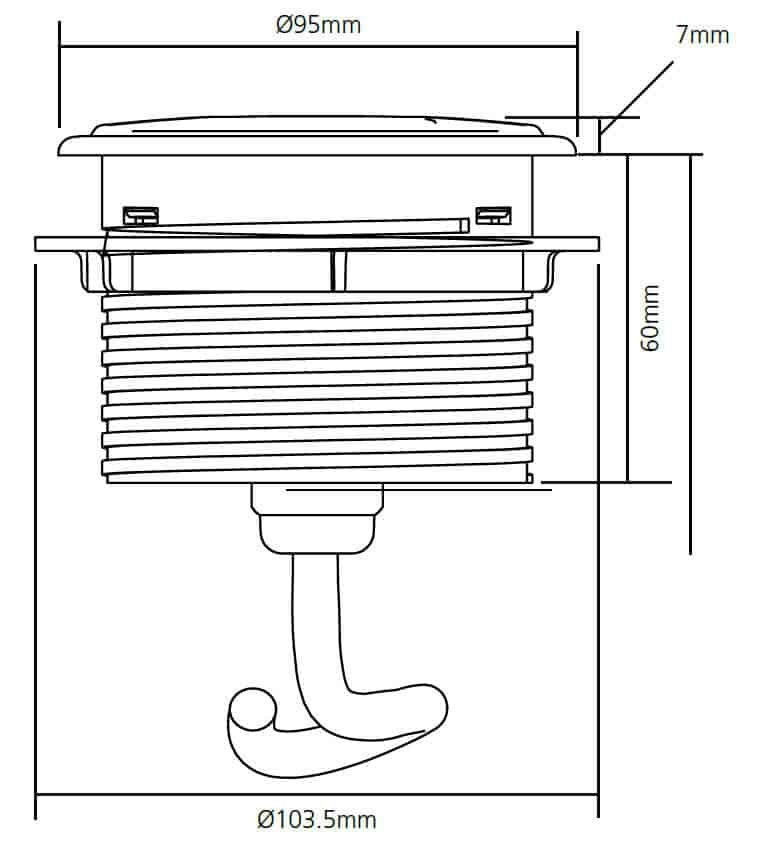

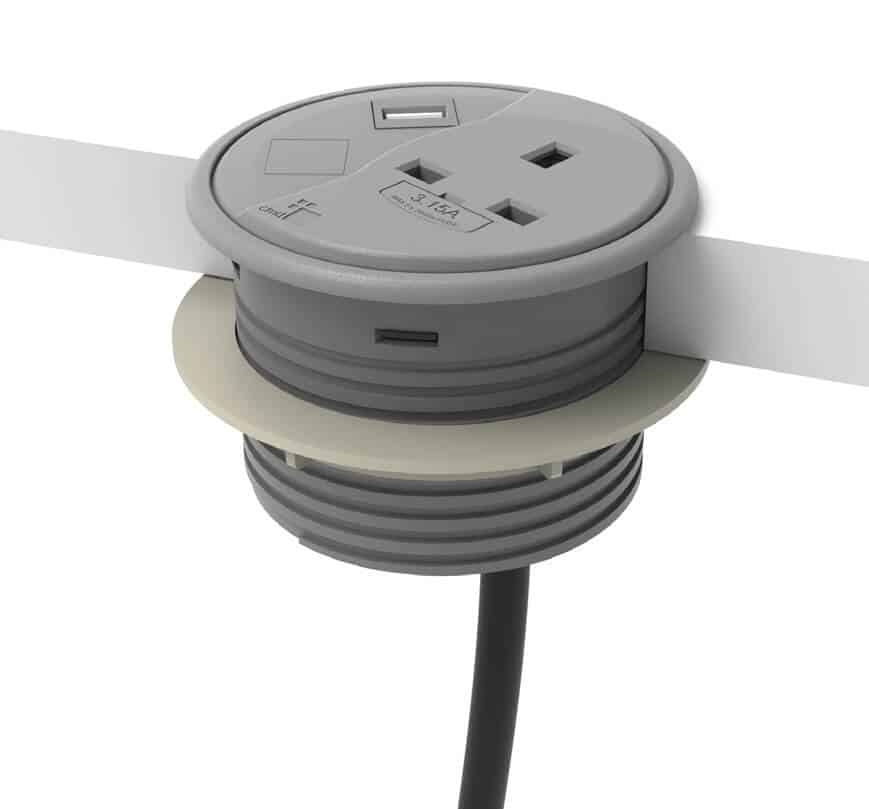

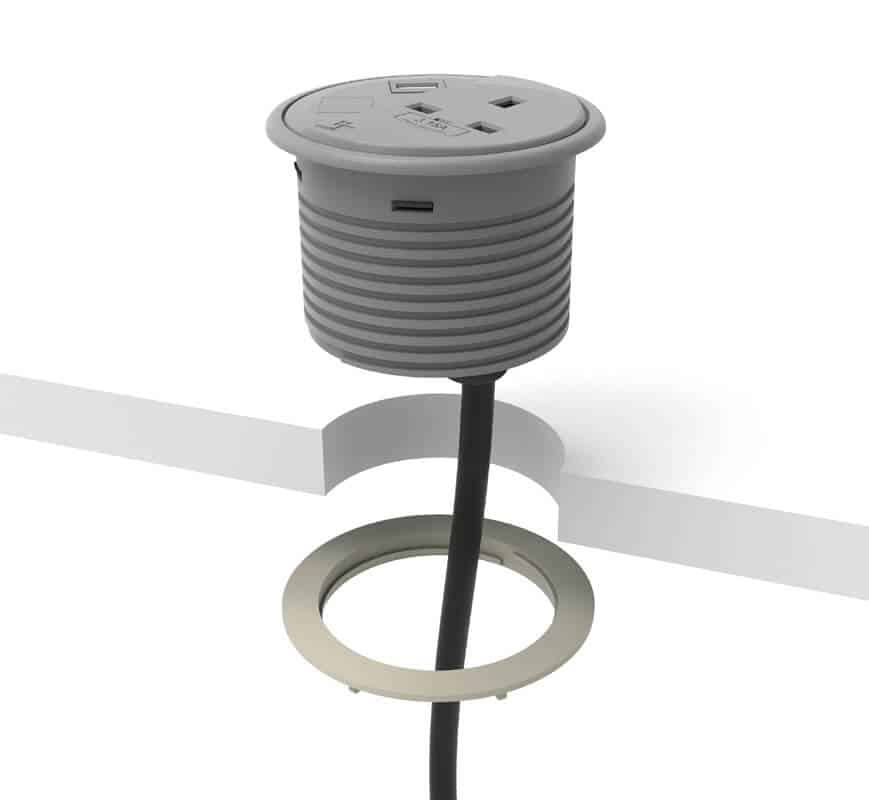

Porthole is simple to install. If you have an existing 80mm grommet hole in your desk simply place the barrel of the module into the grommet hole and use the barrel nut (103.5mm diameter) to secure the unit to the desk.

Additional information

Product Type

Cable Management


£13 / Free if order value of £750+


Installation is not included, please contact us if you would like a quote.


Black, White, Grey


UK Socket 3.15A Fused, 1 x 2 Port 4A USB Socket 1m Black Lead to Male GST, UK Socket 3.15A Fused, 1 x twin USB Type A + Type C charger, 1m mains lead to Wieland
